PMT-48V350W2BR

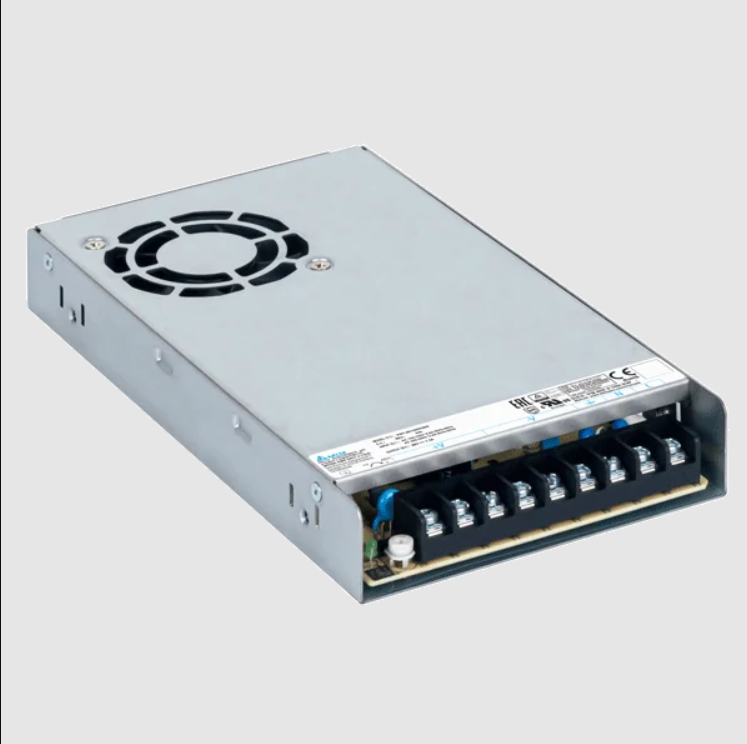

Power Supply PMT-48V350W2BR
Power Supply PMT-48V350W2BR
Power Supply PMT-48V350W2BR

Power Supply PMT-48V350W2BR

Rp 606.020

Delta PMT-48V350W2BR is a compact and reliable industrial power supply that delivers 48V DC at 350W. Moreover, as part of the efficient PMT series, it offers excellent performance and durability. In addition, it features built-in protections against overvoltage, overload, and overtemperature, therefore ensuring safe and stable operation. Furthermore, its easy installation makes it highly convenient for various applications. As a result, it is a cost-effective solution that meets the demands of modern industrial systems.

Add to quote

Description

Spesification Power Supply PMT-48V350W2BR

Output Voltage48 V
Output Voltage Range43.2-52.8 V
Output Current7.3 A
Output Power350.4 W (525.6 W for 1 s)
PARD (20 MHz)< 200 mVpp @ 0°C to 70°C, 600 mVpp typ. @ -30°C to 0°C
Hold-up Time20 ms typ @ 115 VAC
20 ms typ @ 230 VAC
Phase InputSingle Phase
Input Voltage Range90-264 VAC, 180-264 VAC (Selectable by Switch)
Input Frequency47-63 Hz
Input Current6.0 A typ @ 115 VAC
3.4 A typ @ 230 VAC
Efficiency at 100% Load (At 25°C ambient temperature by vertical mounting orientation.)88% typ @ 230 VAC
Max Inrush Current (Cold Start)60 A typ @ 230 VAC
Power FactorNA
Leakage Current< 0.75 mA @ 240 VAC
Case Cover / ChassisSGCC/Aluminium
Dimensions (H × W × D) mm215 × 115 × 30
Unit Weight0.83 kg
Cooling SystemForced Air (Built-in Fan)
MTBF (as per Telcordia SR-332 (I/P: 115 VAC & 230 VAC, O/P: 100% load) for vertical mounting orientation.)> 700,000 hrs
Operating Temperature-30°C to +70°C
Storage Temperature-40°C to +85°C
Operating Humidity20 to 90% RH (Non-Condensing)
Operating Altitude0 to 5,000 m (0 to 16,400 ft)

If you have any questions, feel free to contact us via WhatsApp at the link below. We’re ready to assist you with any information or support you need:

💬https://wa.me/message/JUEF6XXXE7IZP1
