The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s selfdeveloped 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and 6 axes via pulse control ( 200 kHz ). It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines. The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission. The professional yet simple editing

software DIADesigner delivers quick hardware and network configuration with built-in function blocks for different industries. It also provides multi-layer password protection for enhanced system security. The AS Series adopts a rackless design and DIN rail clips for fast vertical module installation. The simple shape and dark gray exterior of the AS series help resist stains and dirt in harsh industrial environments.

• I/O: 1,024 points
• Program capacity: 128k steps
• Data register: 60k words
• extension ability: 32 modules
• 32-bit SoC (System on Chip) CPU for high-performance and high-speed computing
• High-speed execution: up to 40k steps/ms (Condition: 40% LD instruction/60% MOV instruction)
• CPU with built-in RS-485 port x 2, mini USB port, Ethernet port, micro SD card slot and CANopen port (*1)
• 8 axes control via CANopen motion network / max. 6 axes control via pulse control (200 kHz)
• Robust rackless design and patented DIN rail clips for direct plug-in / plug-out module installation and replacement

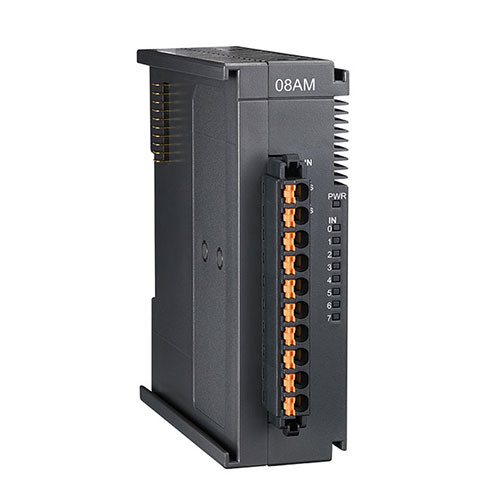

• Various modules for selection: digital I/O modules, analog I/O modules, load cell modules, temperature modules, serial communication modules, industrial bus modules
• PLC programming software (ISPSoft) for program editing, hardware and network configuration, system diagnosis and axis diagnosis control.
• Long-time data logger saves up to 32,768 data records, able to be transferred to SD cards
• Supports a variety of sampling intervals, trigger modes, software settings, and hardware executions
• AS CPU supports up to 8 Delta servo drives and 8 AC motor drives
