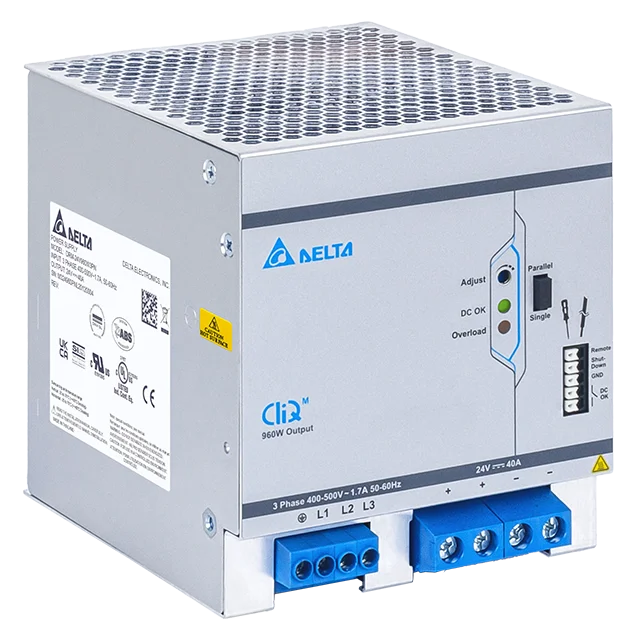

Description
| Output Voltage | 24 V |
| Output Voltage Range | 24-28 V |
| Output Current | 40.0-34.3 A |
| Output Power | 960 W |
| PARD (20 MHz) | < 100 mVpp |
| Hold-up Time | > 20 ms @ 120 VAC > 20 ms @ 230 VAC |
| Phase Input | Two or Three Phase |
| Input Voltage Range | 3 × 320-575 VAC or 2 × 380-575 VAC (DC input range 450-800 VDC) |
| Input Frequency | 47-63 Hz |
| Input Current | < 1.35 A @ 3 × 400 VAC < 0.68 A @ 3 × 500 VAC |
| Efficiency at 100% Load (At 25°C ambient temperature by vertical mounting orientation.) | > 95.3% @ 3 × 400 VAC > 95.2% @ 3 × 500 VAC |
| Max Inrush Current (Cold Start) | < 14.2 A @ 3 × 400 VAC < 17.7 A @ 3 × 500 VAC |
| Power Factor | > 0.90 @ 3 × 400 VAC > 0.90 @ 3 × 500 VAC |
| Leakage Current (3 × 528 VAC, 60 Hz) | TT/TN < 0.95 mA IT < 1.20 mA |
| Case Cover / Chassis | Aluminium |
| Dimensions (H × W × D) mm | 124 × 110 × 128.6 |
| Unit Weight | 2.3 kg |
| Cooling System | Convection |
| MTBF (as per Telcordia SR-332 (I/P: 115 VAC & 230 VAC, O/P: 100% load) for vertical mounting orientation.) | > 568,300 hrs |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5 to 90% RH (Non-Condensing) |
| Operating Altitude | 0 to 5,000 m (0 to 16,400 ft); IEC/EN 61558: 0 to 2,500 m (0 to 8,200 ft) |
