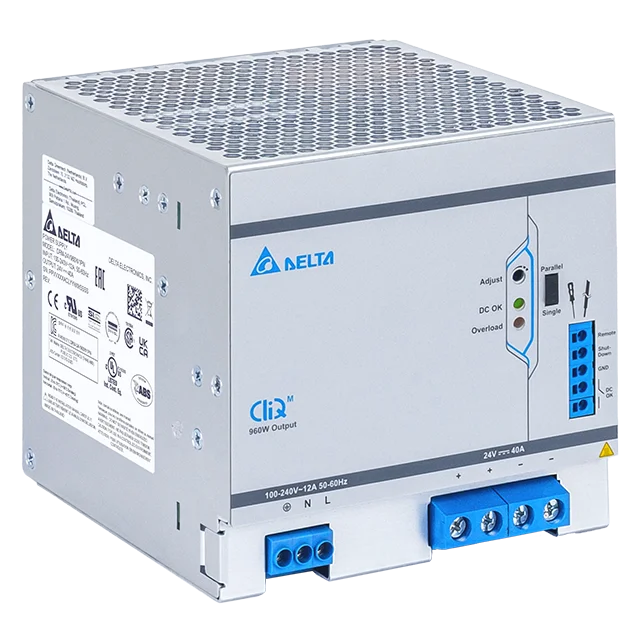

Description
| Output Voltage | 24 V |
| Output Voltage Range | 24-28 V |
| Output Current | 40.0-34.3 A |
| Output Power | 960 W |
| PARD (20 MHz) | < 100 mVpp |
| Hold-up Time | > 30 ms @ 120 VAC > 30 ms @ 230 VAC |
| Phase Input | Single Phase |
| Input Voltage Range | 85-264 VAC |
| Input Frequency | 47-63 Hz |
| Input Current | < 10.10 A @ 120 VAC < 6.00 A@ 230 VAC |
| Efficiency at 100% Load (At 25°C ambient temperature by vertical mounting orientation.) | > 93.6% @ 120 VAC > 94.6% @ 230 VA |
| Max Inrush Current (Cold Start) | < 13 A @ 120 VAC < 20 A @ 230 VAC |
| Power Factor | > 0.97 @ 120 VAC > 0.95 @ 230 VAC |
| Leakage Current (264 VAC, 50 Hz) | TT/TN< 1.18 mA IT< 2.82 mA |
| Case Cover / Chassis | Aluminium |
| Dimensions (H × W × D) mm | 124 × 125 × 133.6 |
| Unit Weight | 2.87 kg |
| Cooling System | Convection |
| MTBF (as per Telcordia SR-332 (I/P: 115 VAC & 230 VAC, O/P: 100% load) for vertical mounting orientation.) | > 513,800 hrs |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5 to 90% RH (Non-Condensing) |
| Operating Altitude | 0 to 5,000 m (0 to 16,400 ft); IEC/EN 61558: 0 to 2,500 m (0 to 8,200 ft) |
